Series 350E

A High-Production, Portable, Robust, ALL FIBER Machine with dual agitation to efficiently condition fiber in the 13.5 cubic hopper. The Meyer Series 350 blowing machine features proprietary ‘scalping auger’ technology, extreme portability and low power requirements. ‘Scalping/shredder’ augers located at bottom of hopper provide a live platform for breaking and conditioning fibers resulting in a positive feeding, non-bridging method of metering fibers. A helix configuration of the 4-blade shredder assures highly conditioned fibers for application. The low profile positioning and moderate speed of the augers relative to the hopper walls extend the life of the bearing and chain. An easy-access slide-gate (located adjacent to blower filter), utilizes an adjustment pin for controlling & locking fiber feed rate. This feature allows for quick adjustment to desired settings. The integrated control panel gives operator simple, easy access & by-pass components. Optional wireless remote available. Control functions are simple and easy to understand. Manual thermal overloads provide a component that is easily re-set, reliable, and most importantly – safe.

  • Cellulose: 2,200 lbs. /hr.
  • Fiberglass: 900 lbs. /hr.
  • Weight: 385 lbs.
  • Dimensions: 38″ x 24″ x 57″
  • Drive Motor: 3/4 HP
  • Airlock: 14″ x 10″
  • Blower: 140 CFM
  • Dual Power: 15/15 amp, 120V
  • Easy to manage 3″ hose kit available in 150’ length

Power Requirements:  Double input, 15 amp, 120 volt

Dimensions:  L 38″ x W 24″ x H 57″

Weight:  385 Lbs.

Hopper Capacity:  13.5 cubic feet

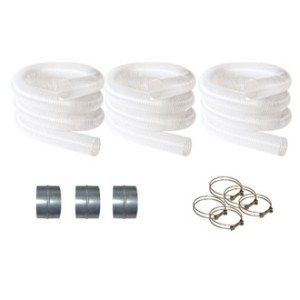

Insulation Blowing Hose Kit A

Insulation Blowing Hose Kit A

Meyer-Made™

DURABILITY, THAT’S A GIVEN. VALUE, THAT’S MEYER-MADE™
