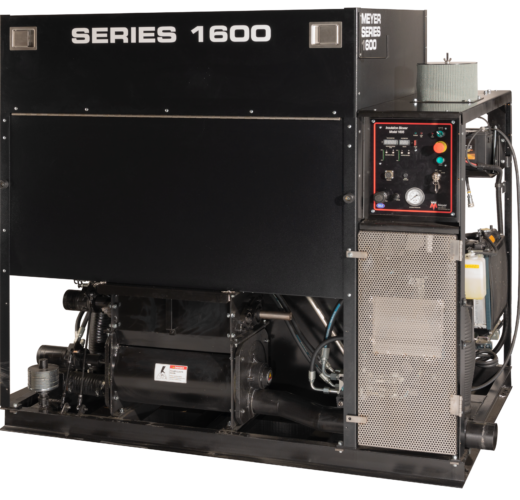

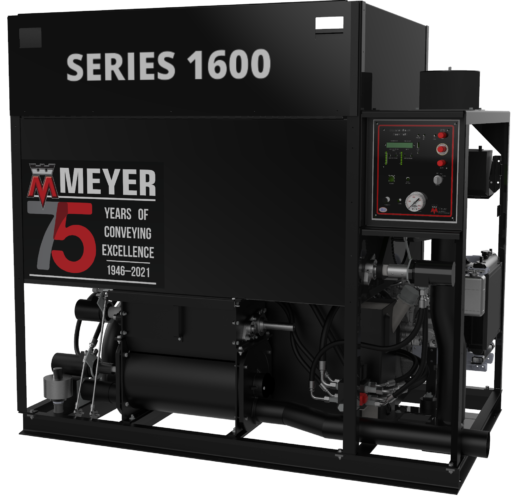

Series 1600

Reliable Hydraulic Power with The Industry’s Fastest High Volume Narrow Body Blower

The NEW Meyer Model 1600 Insulation Blowing Machine features a totally hydraulic drive system providing power to the blower, feeder and hopper. The new variable speed blower control allows the operator to control air volume while maintaining a constant delivery pressure. With Meyer’s hydraulic drive there are no more clutches, transmissions and the associated chains, belts and pulleys.

Our innovative design simplifies installation, providing exceptional operating performance and reliability, requiring minimal maintenance. The narrow body provides a smaller footprint to easily fit into a cab-over style truck. No need for an expensive Big Box truck. Smart engineering simplifies operation, minimizes downtime and delivers accurate and uniform coverage.

The infinitely adjustable hopper speed control provides precise control of hopper conditioning speed, and the electrically operated material slide gate is panel mounted for easy adjustment. All gauges and controls are easily accessible without having to remove protective safety guards.

  • Weight loaded pressure relief valve
  • Infinitely variable air volume valve (optional)
  • Maintenance free agitator arm/pad assembly
  • Welded 4” heavy duty steel structural base
  • High precision, robotically welded components
  • Laser cut, CNC punched heavy gauge steel plate
  • Severe service drive train
  • Large diameter, high grade shafting
  • 200’ 3-way remote control cord (available with optional radio remote)
  • Stainless steel hinges and fasteners
  • Powder coated finish
  • Precision machined rotary airlock feeder
  • Heavy duty bearings
  • Automatic back pressure check valve
  • Heavy duty chains and sprockets
  • High pressure hydraulic torque protection
  • Automatic hydraulic high temperature shutoff
  • Fully guarded drive/power train
  • Low oil shut-off (engine driven models)
  • Two year warranty

Model 1605:

Power Source: 3 Cylinder, Water Cooled Gas Engine
Dimensions: 76″ x 47 3/4″ x 72″
Weight: 1,700 Lbs.

Model 1606:

Power Source: 3 Cylinder, Water Cooled Diesel Engine
Dimensions: 76″ x 47 3/4″ x 72″
Weight: 1,700 Lbs.
(Note: Equipment requires freight shipment)
